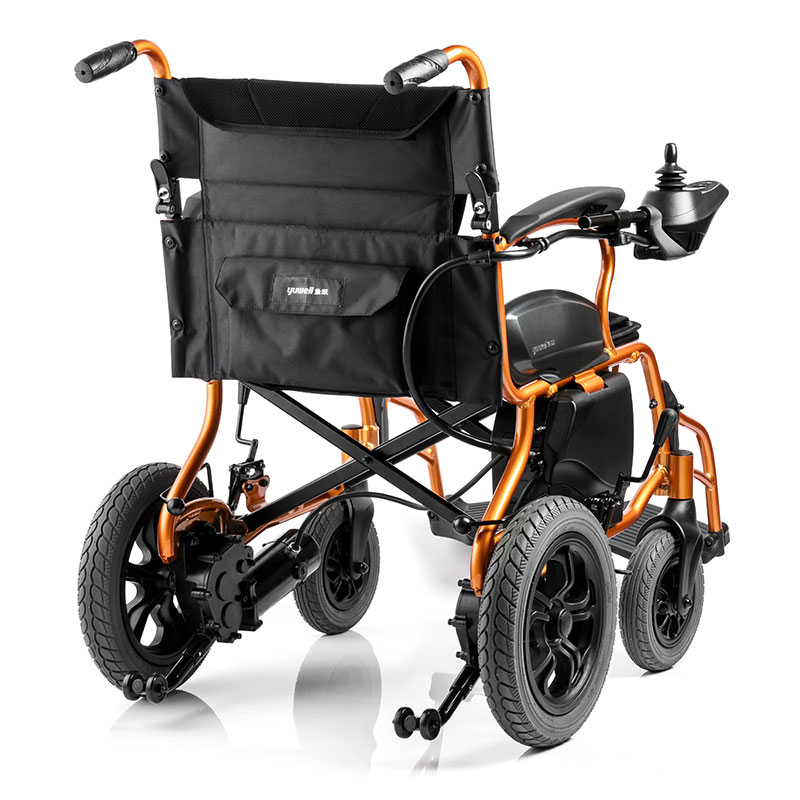

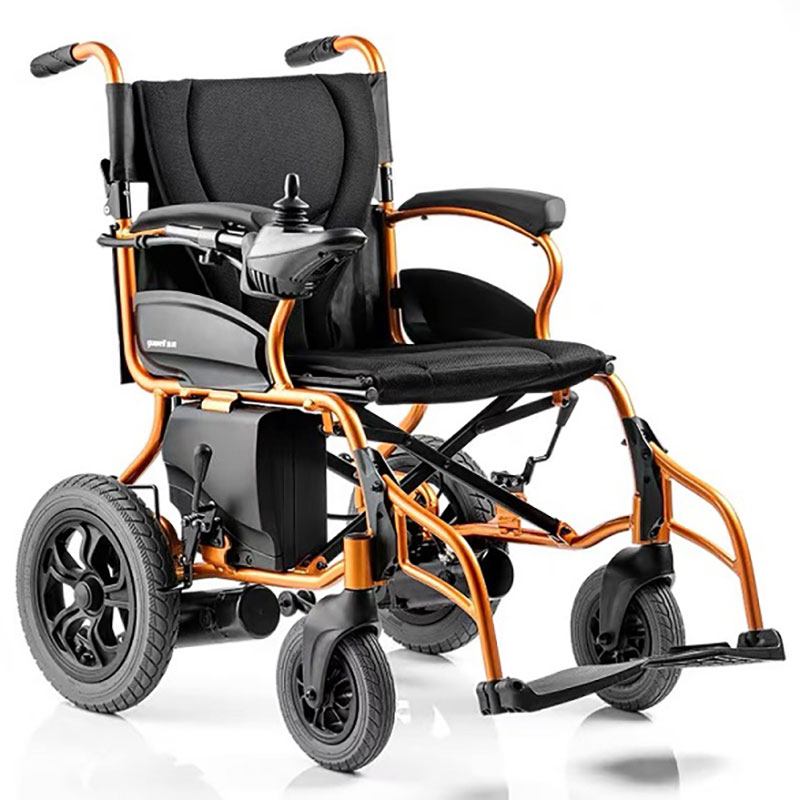

Timago Electric Wheelchair Tim II
Timago Electric Wheelchair Tim II is a smart and compact electric wheelchair with small rear wheels and an energy-efficient 130W motor. With a fully charged battery, the range is up to 20 km depending on user weight and terrain. The electric wheelchair works excellently for both indoor and outdoor use. It can be folded and unfolded easily and weighs 28 kg. The seat has a safety belt that can be used when required.
The control panel has an on/off button, button illumination, adjustable acceleration, joystick, and horn. The wheelchair is equipped with a safe and reliable electromagnetic brake and a fully sealed maintenance-free battery. For safe driving and movement, the wheelchair has smart anti-tip wheels.
Product Features:
- Foldable aluminum frame
- Foldable backrest
- Removable upholstery
- Range up to 20 km
- Control panel – joystick
- Sound signaling
- Speedometer – 5 gears
- Air wheels: rear 12″, front 8″
- Anti-tip wheels
- Max. load 100 kg
- Seat width 45 cm
- Safety belt
Product Specifications
| Maximum speed: | ≤ 6km/h |
| Power consumption: | ≤ 2.5 kWh / 100 km |
| Maximum capacity: | up to 100 kg |
| Braking on horizontal plane: | ≤ 1.5 m |
| Range: | ≤ 20 km |
| Maximum safety braking on slope: | ≤ 3.6 m (6°) |
| Battery: | Lithium battery DC 24 V x 18 Ah |
| Internal power supply: | DC24 V±5 V |
| Obstacle-free height: | ≤ 40 mm |
| Climbing ability: | ≤ 6° |
| Maximum slope: | 9° |
| Minimum turning radius: | 1.2 m |
| Noise: | ＜65 dB |
| Weight: | 28 kg |
