JBH Electric Wheelchair D26
The JBH Electric Wheelchair D26 is a challenger to the market’s best-selling electric wheelchair Eloflex. The chairs are very similar in appearance, and both fold easily for convenient loading into a car trunk. The D26 features two li-ion batteries integrated into the wheelchair frame, unlike Eloflex’s batteries which are mounted under the chair. This design makes the D26 batteries much easier to insert and remove during transport. The batteries can be conveniently charged directly in the wheelchair via a charging port on the joystick, or individually when removed.
The JBH D26 offers high comfort with an easily adjustable backrest angle using a side lever to find your perfect position. The delivery includes a width extension kit that allows you to increase the wheelchair width from 42 cm to 52 cm. The footrest can be adjusted in length to accommodate taller users.

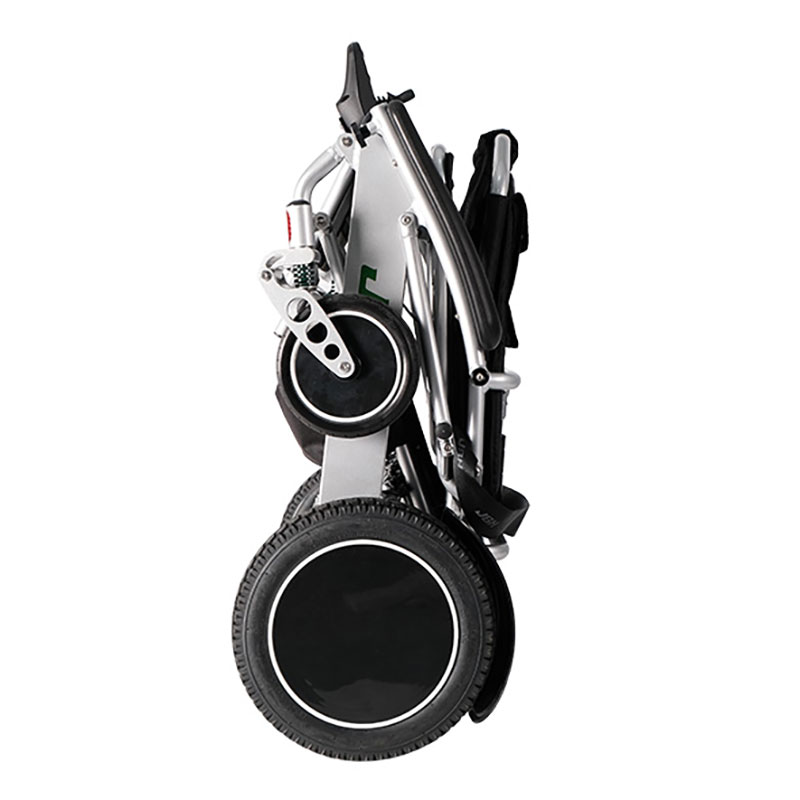

The JBH Electric Wheelchair D26 is extremely portable. The batteries can be placed separately in the car trunk. Then the motor/wheel assembly can be detached on each side without tools. The remaining frame weighs approximately 17 kg and folds completely flat with one grip on the back.
The D26’s rear wheels are 12″ and puncture-proof as standard.
Product Features:
- Back angle easily adjusted with a side lever
- Footrest length can be extended for taller users
- Detachable components for easier transport
- Practical cup holder included
The JBH joystick has well-balanced response, making it easy for inexperienced users to control the wheelchair’s movements.
The D26 is approved for users up to 160 kg. The product has medical device approval and meets the requirements for Free Choice in Region Stockholm.
Note: The bag under the wheelchair is not included. Instead, a practical backpack for mounting behind the backrest is included.
Product Specifications
| Material: | Aluminum alloy |
| Folded dimensions: | 1150 × 600 × 990 mm |
| Dimensions: | 600 × 340 × 810 mm |
| Load capacity: | 160 kg |
| Motor: | 250W × 2 brushless motors |
| Battery: | 24V 6AH × 2 lithium batteries |
| Maximum speed: | 6 km/h |
| Range: | 20 km |
| Front wheels: | 175 × 50 mm PU solid wheels |
| Rear wheels: | 325 × 55 mm PU solid wheels |
| Charging time: | 6 – 8 hours |
| Armrest distance: | 470 mm |
| Seat width: | 440 mm |
| Seat depth: | 450 mm |
| Seat height: | front 550 mm / rear 520 mm |
| Turning radius: | 800 mm |
| Drive: | Rear-wheel drive |
| Brake: | Electromagnetic brake |
| Weight: | 28.4 kg (without battery and joystick) |
| Total weight: | 31.7 kg |
